Hub /ZOZZ Drop In Electric / Refrigerated Tiles

Drop in Griddle Tile:

Quote

Part #

Finish

Size

ST5982G

Drop In Griddle Tile

44" x 30 3/4"

Drop In Tile:

Quote

Part #

Finish

Size

ST5851HW

Full Hot Well Tile

66"x 30 3/4"

ST5852CW

Full Cold Well Tile

66" x 30 3/4"

ST5858FT

Full Frost Top Tile

66" x 30 3/4"

Quantity:

Full Hot and Cold Drop in Action Tiles fits our Hub and ZOZZ Table Collections,

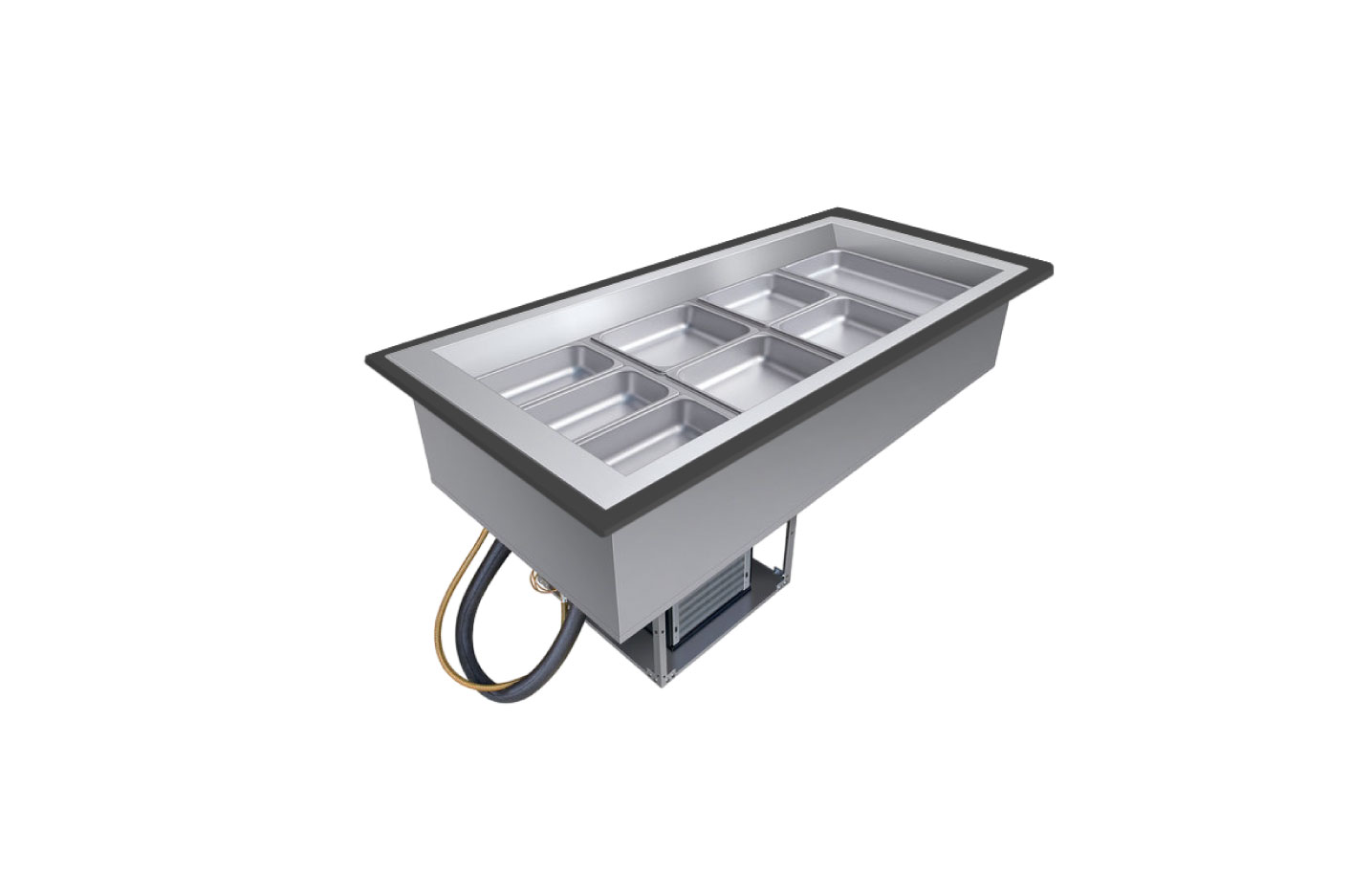

. Cold Well Tile - ST5852CW
120V - 1044W - 60 Hertz - 8.7 Amps - Refrigerant type R-513A

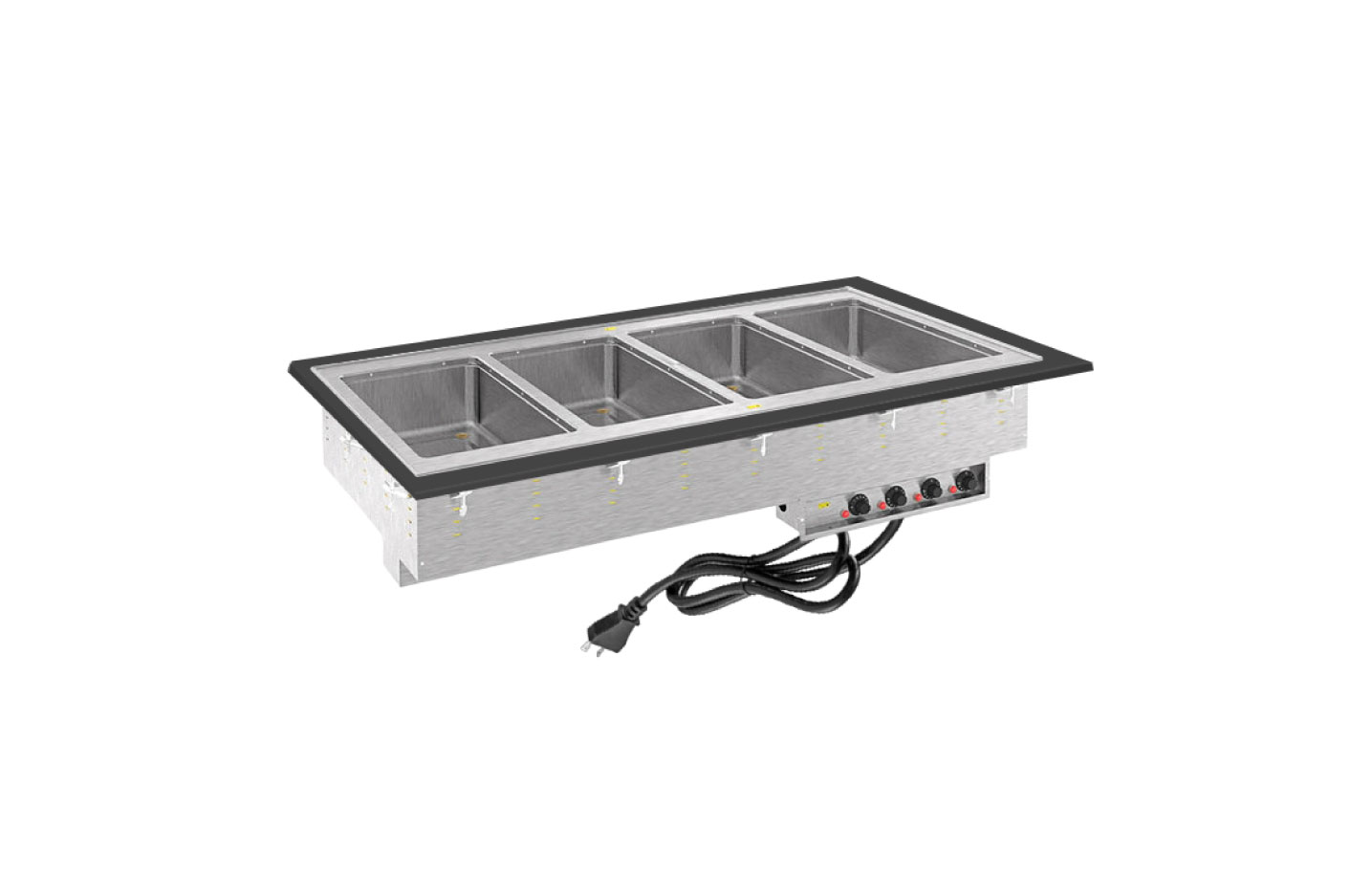

. Hot Well Tile - ST5851HW
120V - 2500W - 20.8 Amps - 1 Phase

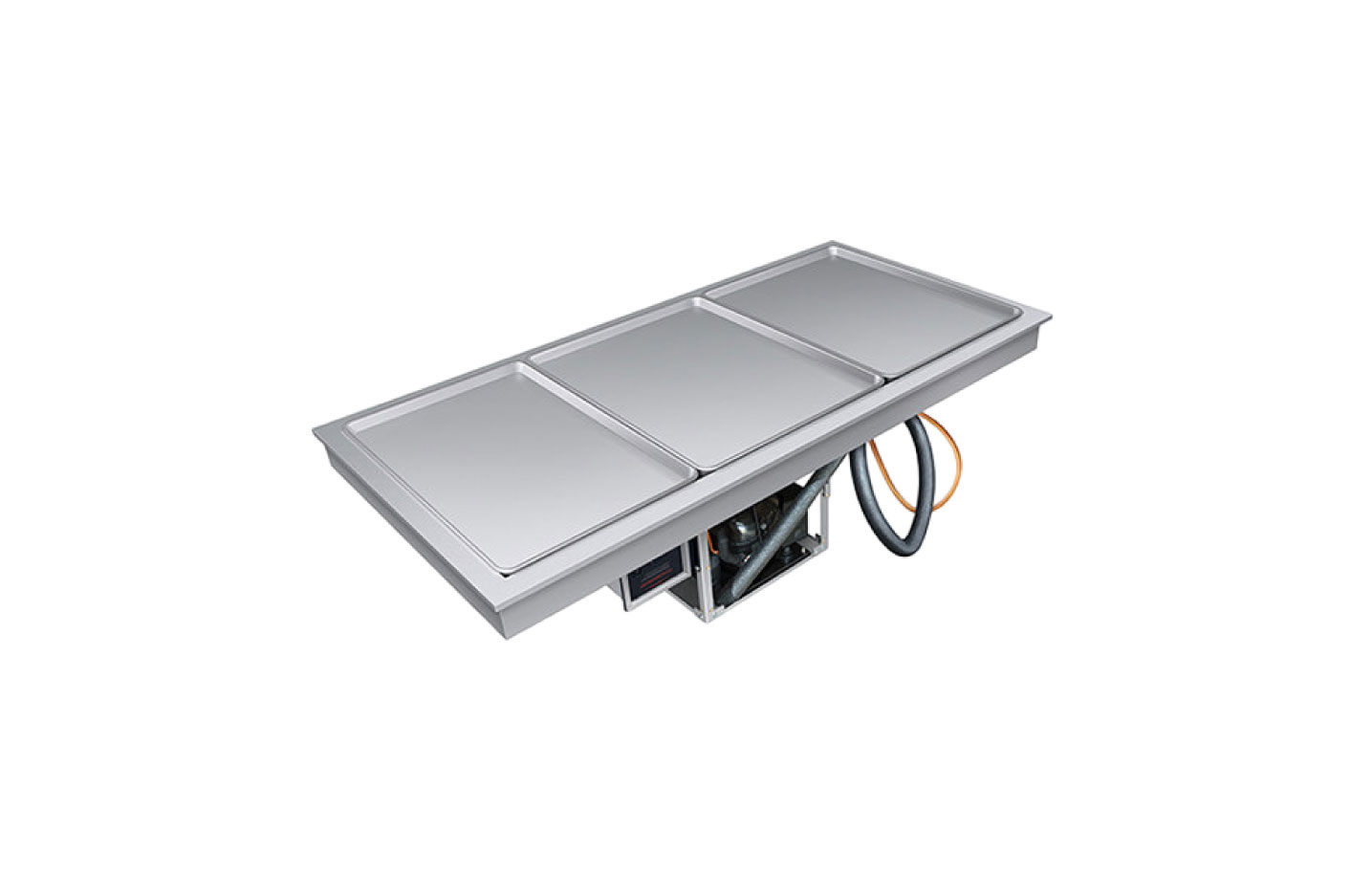

. Frost Top Tile - ST5858FT
120V - 800W - 6.7 Amps - 60 Hertz - 1 Phase
Plug Type NEMA 5-15P
Refrigerant type R-513A.

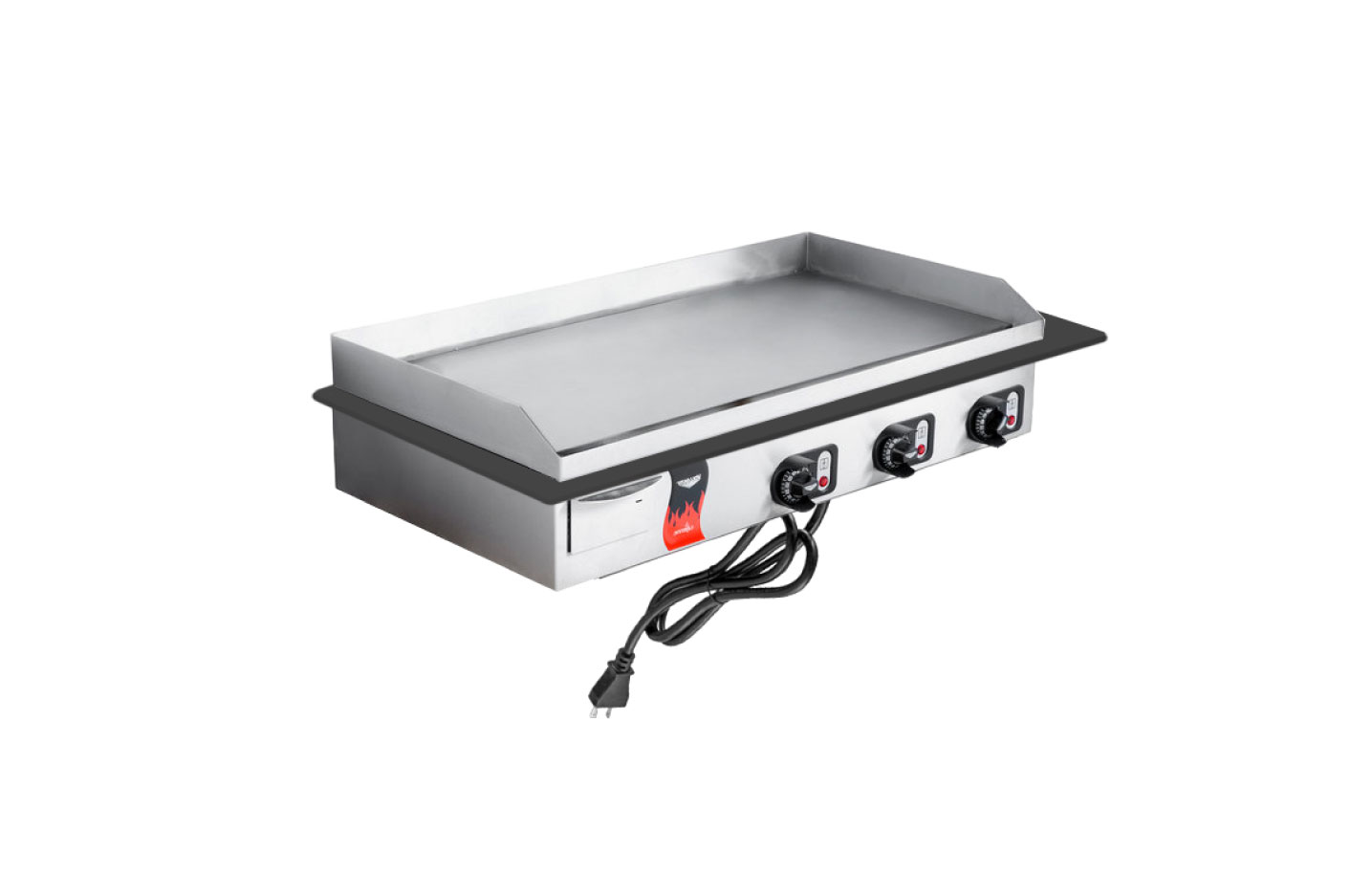

. Griddle Tile - ST5982G
220V - 8400W - 38 Amps - 60 Hertz - Plug Type NEMA 6-50P


UL Approved.
NSF approved.

(food Pans Not Included)

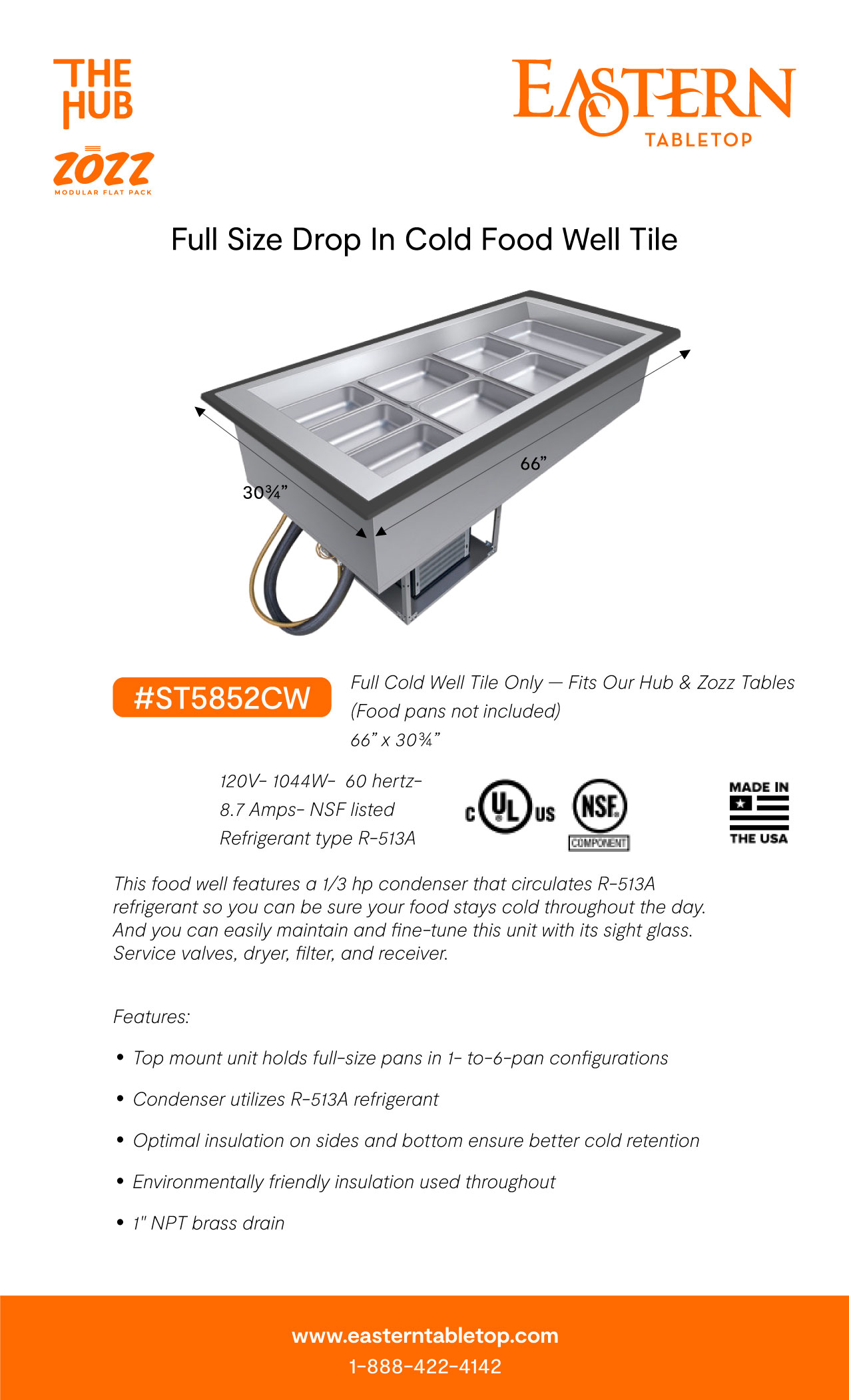

. Cold Well Tile -  ST5852CW

Environmentally Friendly Insulation Used throughout.
1" NPT Brass drain
Top mount unit holds Full-size pans in 1 - 6 pan configuration.

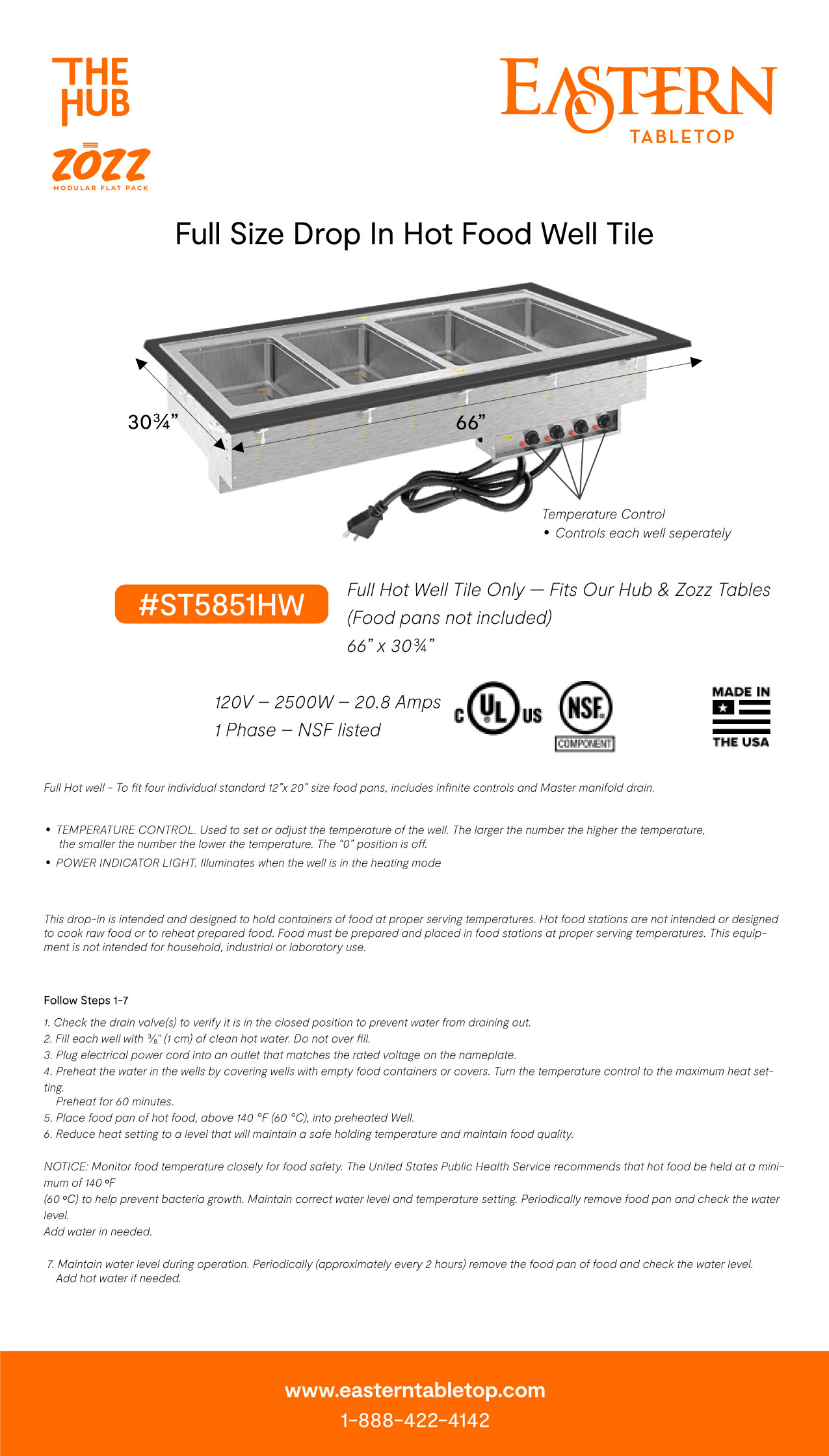

. Hot Well Tile - ST5851HW
Fits four individual standard 12" X 20" size food pans.
Includes Infinite Controls
1" drain

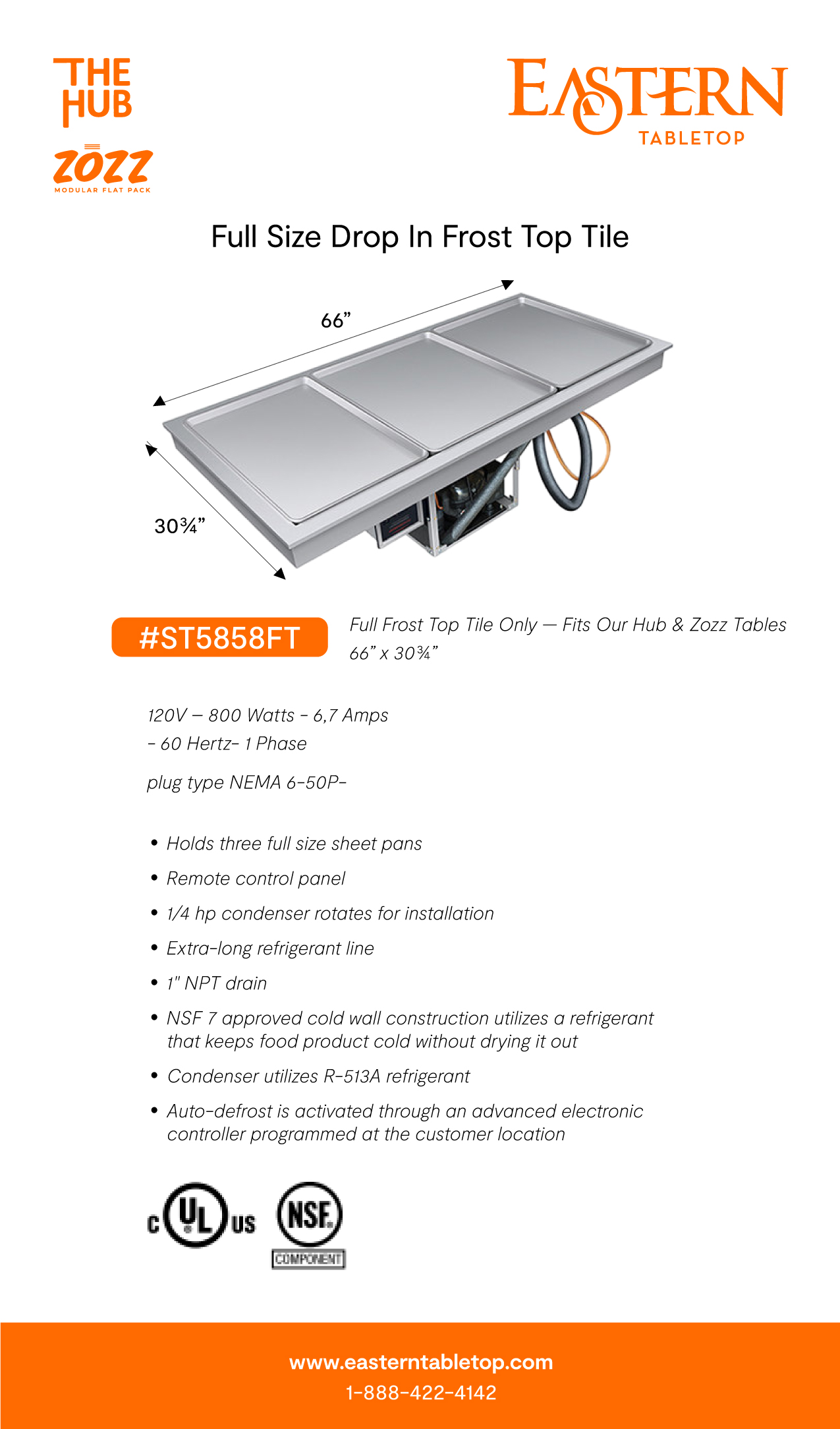

. Frost Top Tile - ST5858FT
Holds Three Full Size Sheet Pans.
1/4 hp condenser rotates for Installation.
1" NPT Drain.

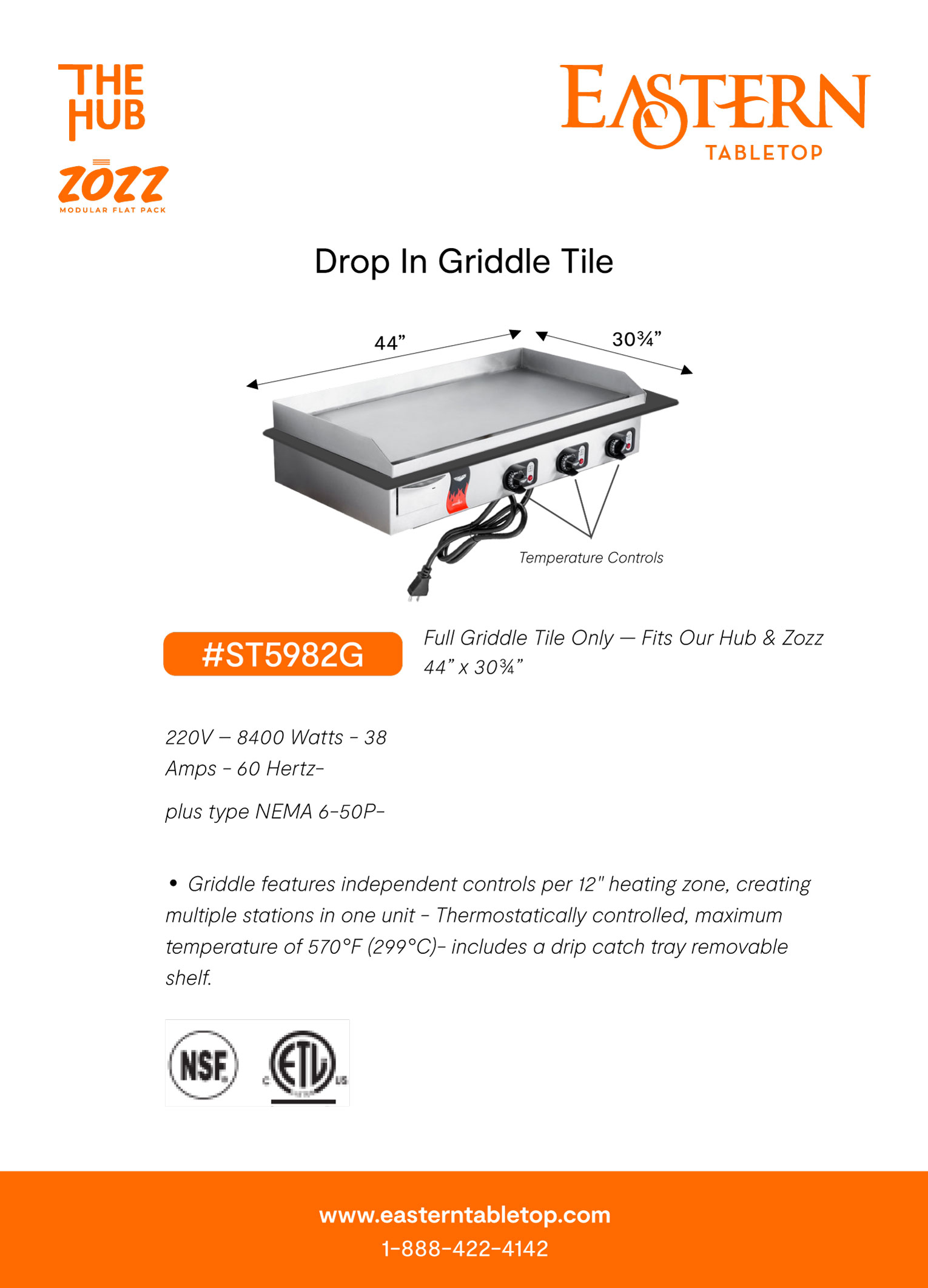

. Griddle Tile - ST5982G
Griddle features independent controls per 12" heating zone, creating Multiple stations in one unit.
Thermostatically controlled,
Maximum temperature of 570 Fahrenheit
 Includes A Drip Catch Tray Removable Shelf.
